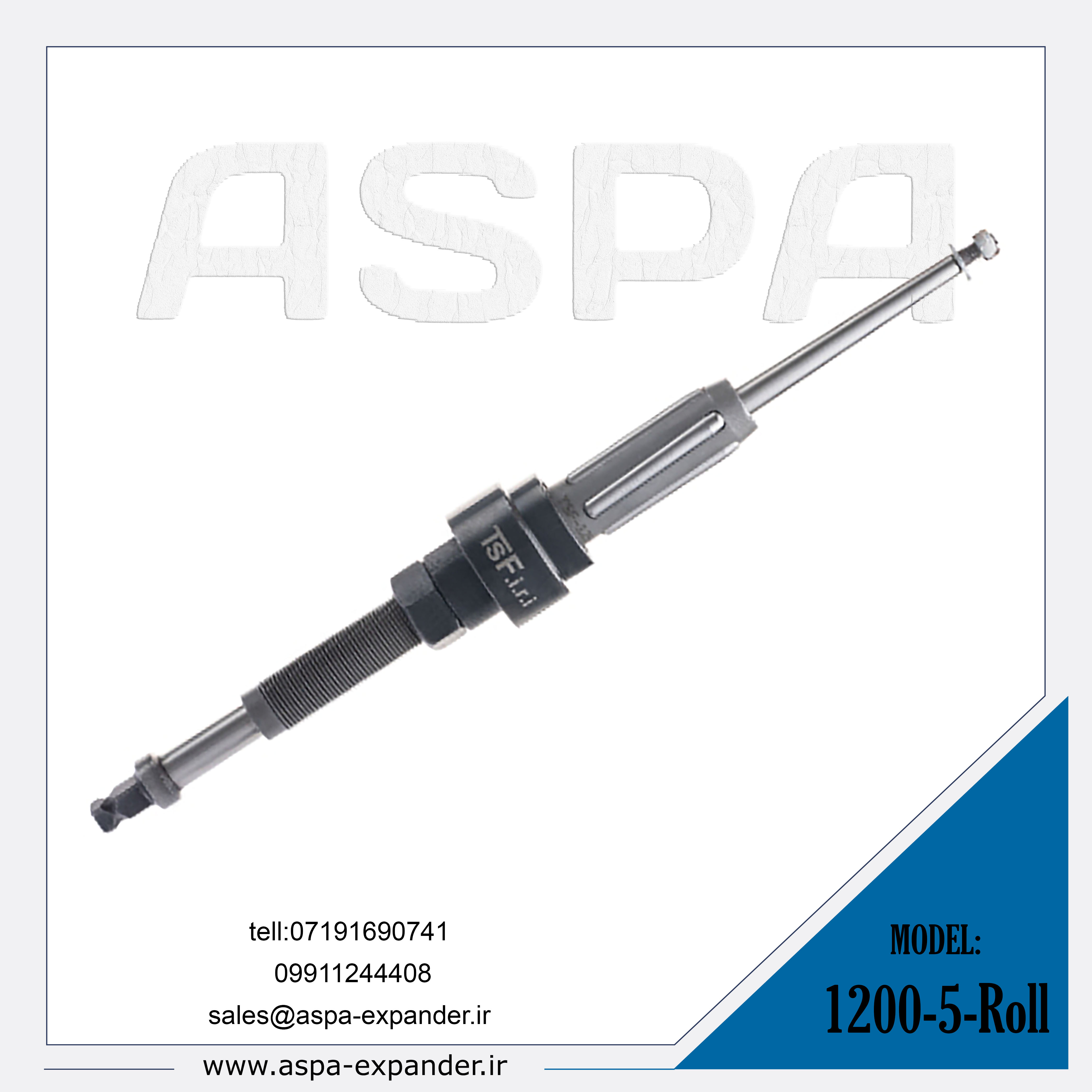

1200-5 Roll
For Condensers and Heat Exchangers
• O.D Range:5/8" to 1,1/2" (15.87 to 38.1 mm)
• ID tube:0.499"-1.505"(12.67-34.9 mm)
Use:Highly recommended for use on thin walled tubes of copper, stainless steel,titanium,incoly and materials in thick tube sheets.
Advantages: Gives a more concentric and even expansion when expanding thin walled tubes vs. acoventional 3 roll expander and reduces tube spring back effect.
• Expanders for tube sizes not listed below are available. Please enquire.
• For Long Expantion We Recommend To Use Our Step By Step Expanders, The Type S Tools (roller length 3" 76.2mm) The number of expander operation passes can be reduced by 35%
