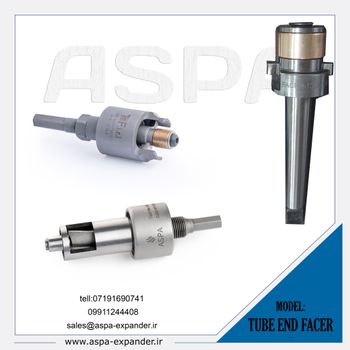

Tube End Facer
series TEFS toolbit square
For facing End of tubes ends in heat exchangers and condensers.
• The tube end facer ASPA type TEFS is a special tool for manual cutting of tube protrusions from the tube sheet. • It is fitted to a driving motor with suitable speed range by means of a morse taper, square or hexagon-shaft.
• The cutter is equipped with an interchangeable pilot for centering during the cutting procedure, according to the tube inside diameter.
• An adjustable distance collar touches the tube sheet face when the
• required tube end position is reached and guaranties a repeatable cutting of tubes.
• A selection of pilots, cutters and distance collars makes the tool adaptable for each tube size between 9.5 mms - 38.1 mm outside diameter.
• Tube end facer for mm sizes of tubes also available.

Tube End Facer
series TF 50 toolbit End mill
for facing ends of tubes in heat exchangers and condensers by copper and Bross materials.

vailable for tubes from 5/8" to 1,1/4" (15.88 mm to 31.75 mm)
